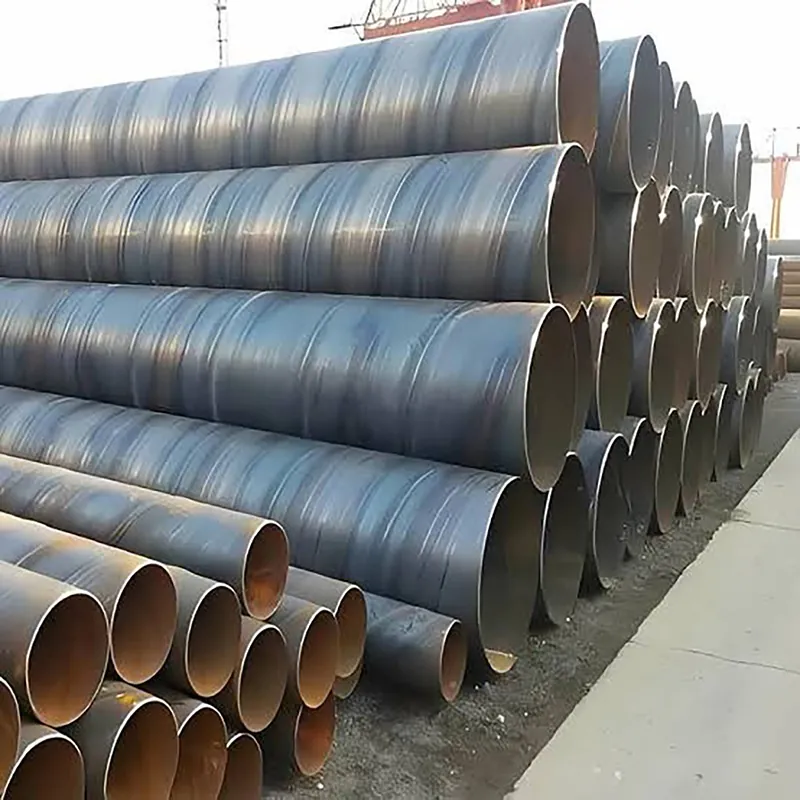

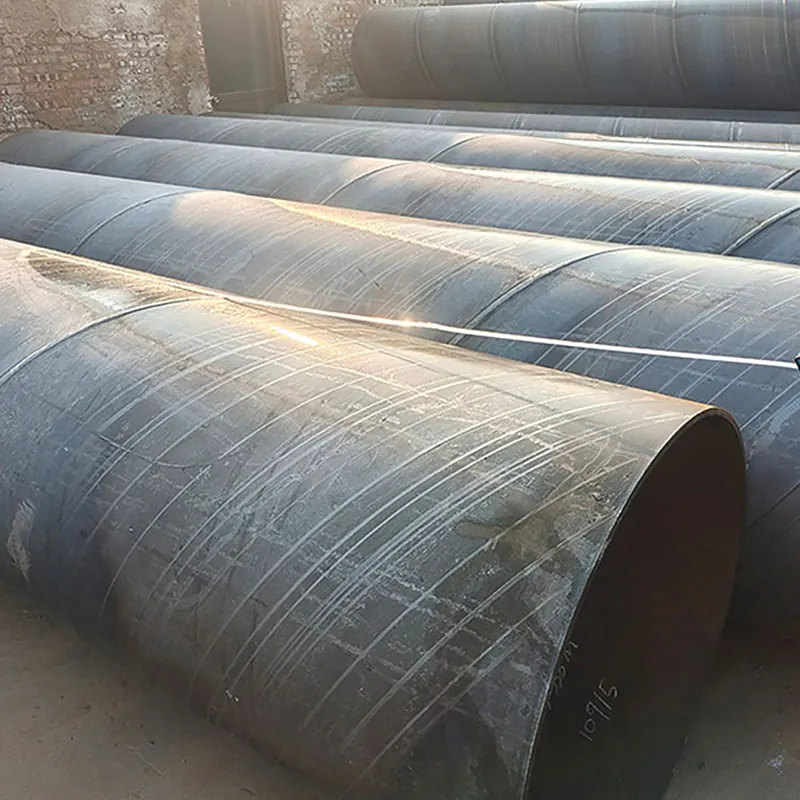

Heavy Wall Thickness SSAW Piling Pipe 1220mm OD for Marine Port Construction

Engineered to withstand the extreme dynamic loads and aggressive corrosive environments of maritime infrastructure, this Heavy Wall Thickness SSAW Piling Pipe is the premier structural foundation for marine port construction. Utilizing a large 1220mm nominal outer diameter and a heavy-duty wall thickness, this Spiral Submerged Arc Welded (SSAW) steel pile delivers outstanding load-bearing capacity.
The continuous spiral weld seam naturally increases the pipe's outer surface roughness, significantly enhancing skin friction with the surrounding subsea soil strata. Fully compliant with international marine piling standards, this heavy-wall pile is designed to support high-capacity wharves, container berths, jetties, and breakwaters, offering superior resistance to massive lateral wave actions, vessel berthing impacts, and heavy port crane loads.

Features & Advantages

Enhanced Skin Friction for Marine Soils: The continuous spiral weld seam increases the pipe’s surface area and mechanical grip with the surrounding mud and sand, maximizing the structural loading efficiency of friction piles.

Heavy-Wall Resistance to Buckling: The thick steel wall provides high ring stiffness and exceptional structural stability, allowing the 1220mm pile to be driven deep into hard bearing strata using heavy hammers without pipe end deformation.

Highly Cost-Effective Large-Diameter Design: The SSAW manufacturing process provides a highly economical method to produce massive 1220mm piles from steel coils, offering considerable material savings on bulk port infrastructure projects.

Superior Coating Compatibility: Perfectly prepared to receive heavy-duty marine anti-corrosion coatings (such as Coal Tar Epoxy, Fusion Bonded Epoxy, or Glass-Flake Epoxy) to withstand the aggressive splash zone and submerged zone salinity.

Technical Specifications

Specification Item	Detailed Description
Product Name	Heavy Wall Thickness SSAW Steel Piling Pipe
Standard Specifications	ASTM A252 Grade 3, EN 10219 S355, GB/T 37636 (Marine engineering piling standard)
Manufacturing Process	SSAW (Spiral Submerged Arc Welding - Double Submerged Arc Welded)
Nominal Outer Diameter	1220 mm (approx. 48 Inch)
Wall Thickness (WT)	Typical 16.0 mm to 25.4 mm (20.0 mm / 0.787 in standard, customizable based on project depth)
Tensile & Yield Strength	Minimum Yield Strength ≥ 310 MPa (45,000 psi) for Grade 3 or ≥ 355 MPa for S355
Anti-Corrosion Prep	External surface blast cleaned to SA 2.5, ready for Coal Tar Epoxy or heavy epoxy painting
Pile End Configurations	Plain ends (square cut) for seamless splicing, or with welded end-bearing drive plates
Standard Pipe Length	12m to 24m per single piece, weld-extendable on piling barges

Product Applications

Container Berths & Port Jetties: Primary support piles carrying heavy-load container cranes, railway tracks, and cargo platforms.

Marine Breakwaters & Sea Walls: Structural foundation columns for permanent ocean wave barriers and coastal erosion defenses.

Offshore Access trestles: High-load structural piles supporting transit trestles and bulk loading platforms.

Mooring Dolphins & Fenders: Rigid, heavy-wall steel structures designed to absorb continuous ship berthing kinetic impacts.

Rigorous Quality Control & Manufacturing Process

Our 1220mm heavy-wall SSAW marine piles are manufactured and certified under strict marine quality guidelines:

Raw Coil Mechanical Verification: Sourcing high-strength hot-rolled carbon steel coils with certified chemistry to guarantee that the mechanical yield and tensile strengths match ASTM A252 Gr 3 or EN 10219 requirements.

Continuous Spiral Forming & Welding: Roll-forming the steel strip into a spiral configuration and executing double submerged arc welding (DSAW) internally and externally to ensure deep, defect-free weld penetration.

100% Weld Seam NDT Inspection: Executing continuous Ultrasonic Testing (UT) and Radiographic Testing (X-ray) along the entire length of the spiral weld to ensure there are no internal welding defects.

Dimensional Calibration: Sizing the massive 1220mm pile to ensure precise outer diameter tolerances and high straightness, ensuring easy, rapid alignment for welding on marine piling barges.

Frequently Asked Questions (FAQ)

Q1: Why is the SSAW (spiral welded) process highly preferred for marine port piling?

A: SSAW pipes are highly cost-effective for large diameters (over 1000mm) because they are formed continuously from steel coils. Structurally, the spiral weld seam increases the pipe’s outer surface roughness. When used as a friction pile in soft subsea soils, this spiral profile increases the skin friction and mechanical locking between the steel pile and the surrounding sand or clay, resulting in a higher loading capacity per meter.

Q2: What typical wall thicknesses and steel grades are specified for 1220mm marine piles?

A: Because marine piles must withstand immense vertical loads and lateral waves, heavy walls are required. A wall thickness of 16.0mm to 25.4mm (with 20.0mm being highly common) is standard. We typically supply these piles in ASTM A252 Grade 3 (minimum yield 310 MPa) or EN 10219 S355 (minimum yield 355 MPa) to ensure the steel can survive heavy hammer impacts.

Q3: How is a 1220mm steel pile protected from harsh marine corrosion?

A: Seawater, especially in the splash zone, is highly corrosive to carbon steel. We can supply these piles pre-blasted to SA 2.5 and coated with heavy-duty marine coatings, such as multi-layer Coal Tar Epoxy or Glass-Flake Epoxy. Alternatively, designers can increase the “corrosion allowance” by specifying a thicker steel wall (like 20mm or 25.4mm) to ensure structural safety over a 50-year service life.

Q4: How do you handle on-site splicing and driving of these heavy-wall piles?

A: Due to transport limits, extremely long piles (30m+) are shipped in standard lengths (such as 12m or 18m) and welded together on-site. Our 1220mm pipes are manufactured with tight diameter and roundness tolerances, allowing on-site welders on piling barges to easily align the pipe ends and perform full-penetration butt welds to extend the pile to its designed depth.
