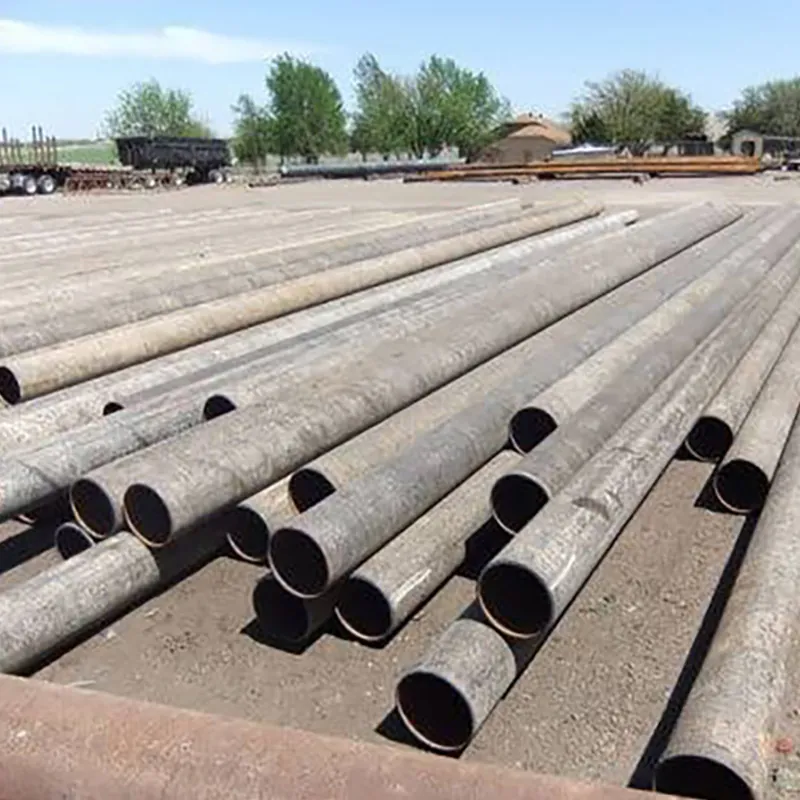

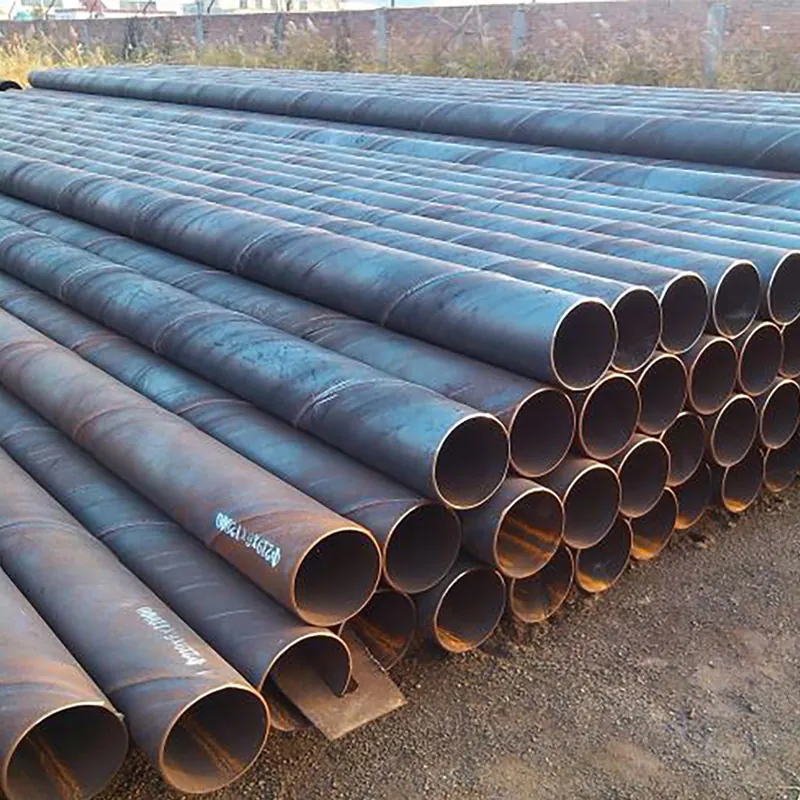

ASTM A53 ASTM A252 Grade 3 LSAW Piling Pipe 1016mm OD 16mm WT for Bridge Foundation

Engineered to support the immense structural loads of modern transportation infrastructure, this ASTM A252 Grade 3 LSAW Piling Pipe is the premier choice for heavy-duty bridge foundations and deep-water piers. Utilizing a large 1016mm nominal outer diameter and a robust 16mm wall thickness, this structural pipe pile is manufactured using the Longitudinal Submerged Arc Welding (LSAW) process. This method delivers outstanding straightness, minimal ovality, and uniform mechanical properties across the entire pipe body.
Compliant with the ASTM A252 Grade 3 standard—the industry's highest strength classification for steel pipe piles—this pile provides a minimum yield strength of 310 MPa. It is designed to act either as a high-capacity friction pile or as a permanent structural casing for bored concrete piles, offering excellent resistance to high axial compressive forces, lateral river currents, and seismic loads.

Features & Advantages

Highest ASTM A252 Strength Grade: Grade 3 steel offers superior yield strength (minimum 310 MPa) and tensile strength (minimum 455 MPa), allowing structural engineers to optimize heavy-load foundation calculations and withstand extreme pile-driving stresses.

Exceptional LSAW Geometric Precision: The straight-seam cold-forming process ensures tight dimensional tolerances and excellent straightness, which is essential for rapid, seamless field welding when splicing piles to reach deeper bedrock.

Heavy-Wall Lateral Resistance: The 16mm wall thickness provides outstanding resistance to lateral soil shifts, riverbed erosion currents, and bending forces, which is vital for bridge piers and highway overpasses.

Versatile Pile End Compatibility: Highly suitable for both open-end configurations (allowing soil plug formation to ease deep driving) or closed-end configurations with welded conical shoes or flat end plates.

Technical Specifications

Specification Item	Detailed Description
Product Name	ASTM A252 Grade 3 LSAW Steel Pipe Pile
Standard Specification	ASTM A252 / A252M (Standard Specification for Welded and Seamless Steel Pipe Piles)
Steel Grade	Grade 3 (Yield Strength ≥ 310 MPa / 45,000 psi; Tensile Strength ≥ 455 MPa)
Manufacturing Process	LSAW (Longitudinal Submerged Arc Welded - Double Submerged Arc Welded)
Nominal Diameter	1016 mm (approx. 40 Inch)
Wall Thickness (WT)	16.0 mm (0.630 inches)
Ends Preparation	Square cut plain ends (ideal for butt welding / field splicing) or with beveled ends
Joint Weld Integrity	100% Non-destructive weld seam inspection (UT & RT)
Surface Finish Options	Bare (uncoated), temporary rust-preventative black varnish, or custom anti-corrosion coatings
Standard Length	Single pipe lengths up to 24m, customizable as per logistical and driving limitations

Product Applications

Deep Bridge Foundations: Supporting piles for highway, high-speed railway, and large-span marine bridges.

High-Load Flyover Piers: Structural support columns for elevated urban overpasses and highway ramp structures.

Retaining Walls & Cofferdams: Heavy-duty permanent retaining structures and temporary deep-excavation support.

Industrial Infrastructure Piles: Foundation piles for heavy power stations, chemical plants, and high-rise commercial structures.

Rigorous Quality Control & Manufacturing Process

Our 1016mm LSAW piling pipes are manufactured and verified under strict geotechnical engineering guidelines:

Structural Steel Plate Inspection: Verifying the mechanical properties (tensile and yield tests) and chemical composition of the raw steel plates to ensure compliance with ASTM A252 Grade 3 structural guidelines.

JCOE Cold Forming & Welding: Progressive cold-forming of the plate into a perfect cylinder, followed by continuous automated double-sided submerged arc welding (DSAW) to ensure deep weld penetration and high joint efficiency.

Mechanical Cold Expansion: Mechanically expanding the finished pipe to achieve maximum dimensional accuracy, reducing ovality and ensuring high straightness (straightness tolerance within 0.2% of total length).

Seam Integrity & Physical Testing: Executing 100% Ultrasonic Testing (UT) and Radiographic Testing (X-ray) along the weld seam, coupled with physical flattening tests to guarantee absolute seam reliability under intense hammer-driving stress.

Frequently Asked Questions (FAQ)

Q1: Why is the ASTM A252 Grade 3 standard specified for bridge foundations?

A: ASTM A252 is the premier global standard specifically governing steel pipe piles used in structural foundations. Grade 3 is the highest strength class within this standard, delivering a minimum yield strength of 310 MPa. For large-scale infrastructure like bridges, Grade 3 steel allows engineers to support heavier vertical and lateral loads with optimized pipe weight, making the project safer and more economical.

Q2: What is the structural advantage of LSAW over spiral-welded (SSAW) pipes for bridge piles?

A: LSAW (Longitudinal Submerged Arc Welded) pipes have only a single straight weld seam and undergo cold expansion during manufacturing. This process yields superior roundness, tighter diameter tolerances, and exceptional straightness. For deep bridge piles that require precise vertical driving and flawless alignment during field welding (splicing), LSAW pipes are the industry-standard choice.

Q3: Can these 1016mm piles be spliced and welded together on-site to increase depth?

A: Yes, absolutely. Geotechnical designs often require piles to be driven 30 to 60 meters deep to reach load-bearing rock, which exceeds standard shipping lengths. Our 1016mm plain-end piles are manufactured with excellent dimensional accuracy, making it easy for on-site welders to perfectly align the joints and perform high-quality full-penetration butt welds to extend the pile length during driving operations.

Q4: Is a 16mm wall thickness sufficient for driving through hard soil layers?

A: Yes. A 16mm (0.630-inch) wall thickness provides a very robust steel cross-section. It easily resists “toeing” (distortion of the pipe end) when driven through dense gravel, stiff clay, or cobble-mixed layers using heavy hydraulic diesel hammers, allowing the pile to reach the designated load-bearing strata intact.
