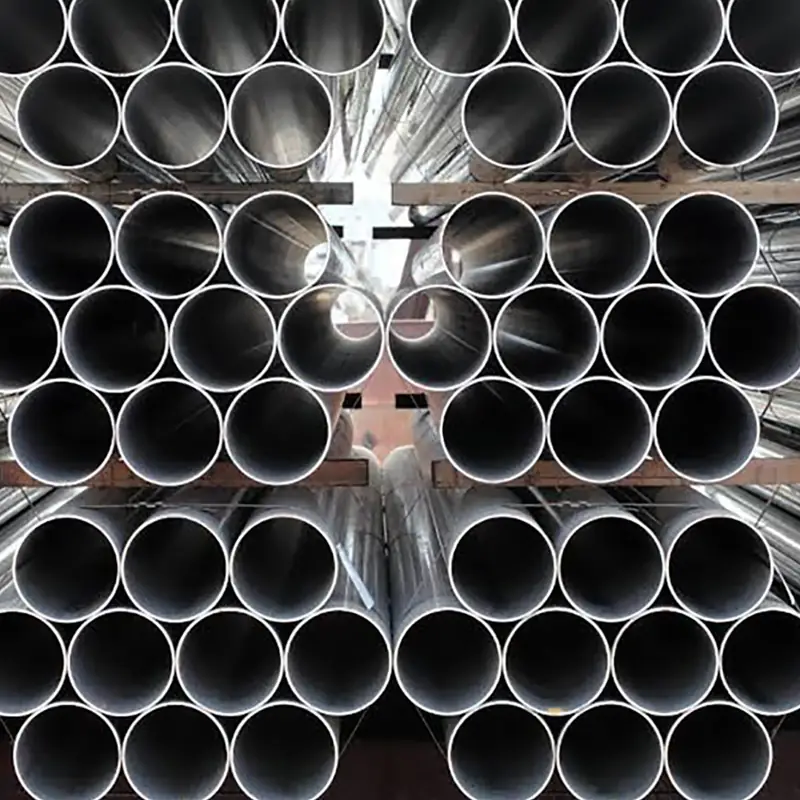

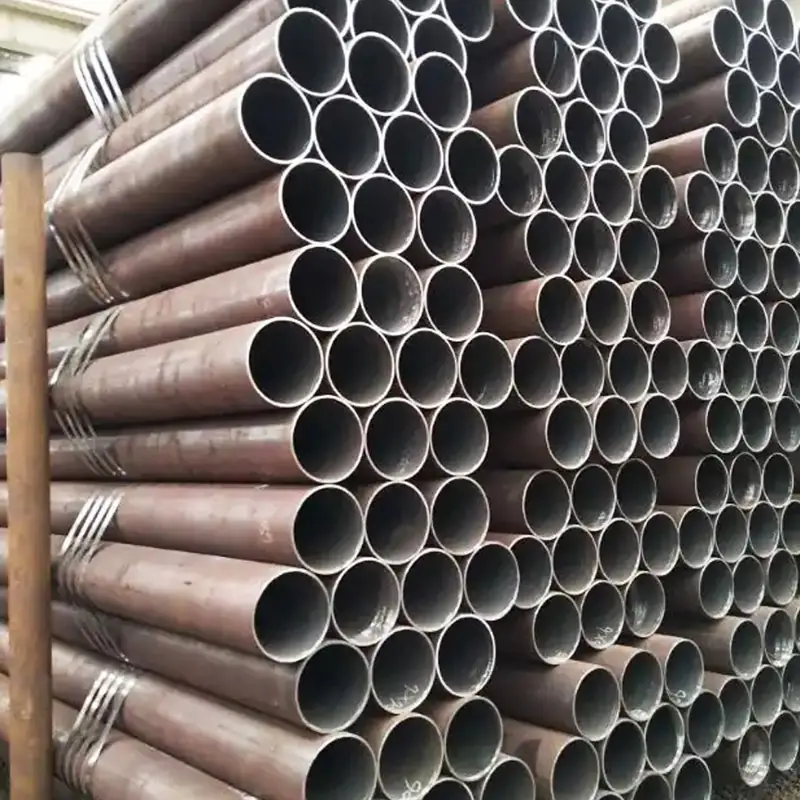

API 5L X65 PSL2 Seamless Line Pipe 12 Inch Sch 80 for High Pressure Service

Engineered to provide maximum structural safety and exceptional pressure containment under extreme operating conditions, this API 5L X65 PSL2 Seamless Line Pipe is a premier choice for high-pressure energy transmission. Featuring a 12-inch nominal diameter (323.8mm OD) and a heavy-wall Schedule 80 (17.48mm WT) seamless construction, this pipe completely eliminates the risk of weld-seam failures, making it ideal for deep burial, subsea, and rugged geographical terrains.
Manufactured to strict Product Specification Level 2 (PSL2) standards, the high-yield X65 grade steel guarantees superior fracture toughness and impact resistance. It serves as an ultra-reliable conduit for high-pressure natural gas, sour crude oil, and critical fluid transmission lines operating under immense mechanical and environmental stress.

Features & Advantages

Seamless Structural Integrity: Produced without any weld seams through advanced piercing and rolling, offering a completely uniform steel body that maximizes burst pressure safety margins.

High-Yield API 5L X65 Performance: Delivers exceptional mechanical strength (minimum 450 MPa yield strength), allowing for high operating pressures while optimizing pipeline wall thickness and overall steel weight.

Stringent PSL2 Compliance: Subjected to mandatory Charpy V-notch impact toughness testing, tighter chemical boundaries, and strict carbon equivalent limits, ensuring superior field weldability and crack arrest capabilities.

Heavy-Wall Schedule 80 Durability: The 17.48mm wall thickness provides exceptional mechanical resistance to external crushing forces, making it ideal for deepwater subsea pipelines, offshore risers, and high-stress land crossings.

Technical Specifications

Specification Item	Detailed Description
Product Name	API 5L X65 PSL2 Seamless Line Pipe
Standard Specification	API SPEC 5L (Specification for Line Pipe) / ISO 3183 equivalent
Steel Grade	Grade X65 / L450 (Yield Strength ≥ 450 MPa / 65,300 psi; Tensile Strength ≥ 535 MPa)
Quality Specification Level	PSL2 (Product Specification Level 2 - Mandatory Toughness & NDT)
Manufacturing Process	SMLS (Seamless - Hot Pierced and Rolled)
Nominal Pipe Size (NPS)	12 Inch (DN300)
Outer Diameter (OD)	12.750 inches (323.8 mm)
Wall Thickness (WT)	Schedule 80 (0.688 inches / 17.48 mm)
Pipe Ends	Beveled Ends (30°~35°) machined to standard tolerances for high-pressure field welding
Service Classifications	Standard High Pressure, and optional Sour Service (H2S environment)
Standard Length	Double Random Length (DRL - approx. 12m) or customized

Product Applications

Offshore & Subsea Pipelines: High-pressure subsea flowlines, offshore platform risers, and tie-in systems.

High-Pressure Oil & Gas Trunklines: Cross-country gas grids and oil pipelines operating under continuous immense internal pressures.

High-Stress Land Crossings: Pipeline sections traversing riverbeds, mountain terrains, active seismic zones, and heavy-traffic highways.

Petrochemical & Refinery Manifolds: High-temperature, high-pressure process piping loops and industrial manifold systems.

Rigorous Quality Control & Manufacturing Process

Our 12-inch X65 seamless line pipes are manufactured and inspected under uncompromising metallurgical guidelines:

High-Purity Billet Selection: Sourcing vacuum-degassed structural steel billets with strictly controlled carbon equivalents (CEq) to ensure superb field weldability and high toughness.

Rotary Piercing & Hot Rolling: Heating the billet and piercing it dynamically to form a seamless hollow shell, followed by multi-stand hot rolling to achieve precise Schedule 80 wall thickness and a 12-inch outer diameter.

Thermal Treatment & Impact Testing: Normalizing or quenching and tempering the seamless pipe, followed by mandatory Charpy V-notch impact tests at low temperatures (typically 0°C or -20°C) to verify fracture toughness and prevent brittle failures.

100% Non-Destructive Testing (NDT): Executing 100% ultrasonic testing (UT) and electromagnetic testing across the entire pipe body, coupled with a mandatory high-pressure hydrostatic test to ensure complete material integrity.

Frequently Asked Questions (FAQ)

Q1: Why is seamless (SMLS) pipe specified over welded alternatives for X65 PSL2 pipelines?

A: Welded pipes have a longitudinal seam which is traditionally the most vulnerable part of a pipe under extreme pressure. For offshore risers, high-pressure natural gas lines, and critical river crossings, seamless pipes are specified because their uniform, weld-free steel body eliminates any risk of weld-seam failures, ensuring maximum safety margins.

Q2: What strict testing requirements differentiate PSL2 from standard PSL1 for Grade X65?

A: API 5L PSL2 mandates Charpy V-notch impact testing to verify the steel’s fracture toughness at sub-zero temperatures (preventing rapid crack propagation). Additionally, PSL2 strictly regulates the carbon equivalent (CEq) to guarantee excellent weldability, and enforces mandatory 100% non-destructive testing (NDT) to identify any internal laminations or defects.

Q3: How does the Schedule 80 wall thickness benefit high-pressure service?

A: For a 12-inch pipe, “Schedule 80” signifies a heavy wall thickness of 17.48mm. This massive steel mass drastically increases the pipe’s internal burst pressure rating and its resistance to external crushing forces. This makes it highly suitable for deep soil burial or deepwater subsea hydrostatic pressure environments.

Q4: Are these X65 seamless pipes suitable for sour service (H2S environments)?

A: Yes. When requested, we can supply these API 5L X65 PSL2 seamless pipes with enhanced chemical composition (low sulfur and low phosphorus) and specific heat treatment to resist Hydrogen-Induced Cracking (HIC) and Sulfide Stress Corrosion Cracking (SSCC) in accordance with NACE MR0175/ISO 15156.
