3PE Coated API 5L X42 Line Pipe 16 Inch Sch 20 for Underground Water Pipeline

Engineered to provide an exceptionally durable, leak-proof, and corrosion-resistant conduit for long-distance municipal water networks, this 3PE Coated API 5L X42 Line Pipe represents the benchmark in modern subterranean water infrastructure. Utilizing a high-strength API 5L Grade X42 carbon steel base, this 16-inch nominal pipe size (406.4mm OD) with a Schedule 20 (7.92mm WT) wall thickness delivers the optimal balance of mechanical yield strength and cost efficiency.
The exterior of the pipe is protected by an advanced, factory-applied Three-Layer Polyethylene (3PE/3LPE) coating system conforming to the DIN 30670 standard. This rugged composite shell completely insulates the carbon steel pipe from aggressive soils, continuous groundwater exposure, and stray electrical currents, ensuring a 30+ year maintenance-free service life for high-capacity buried water mains and regional water diversion pipelines.

3PE-Coated-API-5L-X42-Line-Pipe-16-Inch-Sch-20-for-Underground-Water-Pipeline-1

Features & Advantages

Impenetrable 3PE Corrosion Defense: Combining a chemically bonded FBE primer, intermediate copolymer adhesive, and tough high-density polyethylene (HDPE) topcoat, the 3PE system offers ultimate resistance to soil acids, microbes, and cathodic disbondment.

X42 Balanced Structural Strength: Grade X42 (L290) steel provides excellent mechanical yield strength (minimum 290 MPa) with high ductility, enabling safe pressure containment and reliable ground-movement tolerance.

Cost-Effective Sch 20 Dimensions: The 7.92mm wall thickness provides robust structural integrity while minimizing steel weight and project material costs compared to heavier schedules, making it highly economical for municipal budgets.

Designed for Underground Mains: Engineered to easily withstand external burial soil loads, water hammer pressure spikes, and mechanical stress during handling and backfilling.

Technical Specifications

Specification Item	Detailed Description
Product Name	3PE Coated Welded Steel Line Pipe
Base Pipe Standard	API Spec 5L (Line Pipe) / AWWA C200 equivalent
Steel Grade	Grade X42 / L290 (Yield Strength ≥ 290 MPa / 42,100 psi; Tensile Strength ≥ 415 MPa)
Manufacturing Process	ERW (Electric Resistance Welded) or Welded
Nominal Pipe Size (NPS)	16 Inch (DN400)
Outer Diameter (OD)	16.00 inches (406.4 mm)
Wall Thickness (WT)	Schedule 20 (0.312 inches / 7.92 mm)
External Anti-Corrosion Coating	3PE / 3LPE (Three-Layer Polyethylene Coating)
Coating Standards	DIN 30670, ISO 21809-1, GB/T 23257
Pipe Ends	Beveled Ends (30°~35°) with a factory bare steel cutback for field joint welding
Standard Length	5.8m, 6.0m, 11.8m, 12.0m, or customized

Product Applications

Municipal Underground Potable Water Mains: Supplying clean potable water to large-scale urban and regional populations.

Regional Raw Water Diversion Pipelines: Conveying untreated fresh water from dams, reservoirs, or lakes to city treatment plants.

Agricultural Bulk Irrigation Networks: Highly robust water conveyance and water distribution loops in agricultural infrastructure.

Industrial Cooling Supply Lines: Subterranean cooling water supply lines buried in aggressively wet, swampy, or chemical-rich coastal soils.

Rigorous Quality Control & Manufacturing Process

Our 16-inch 3PE-coated X42 pipes undergo a highly standardized manufacturing and coating process:

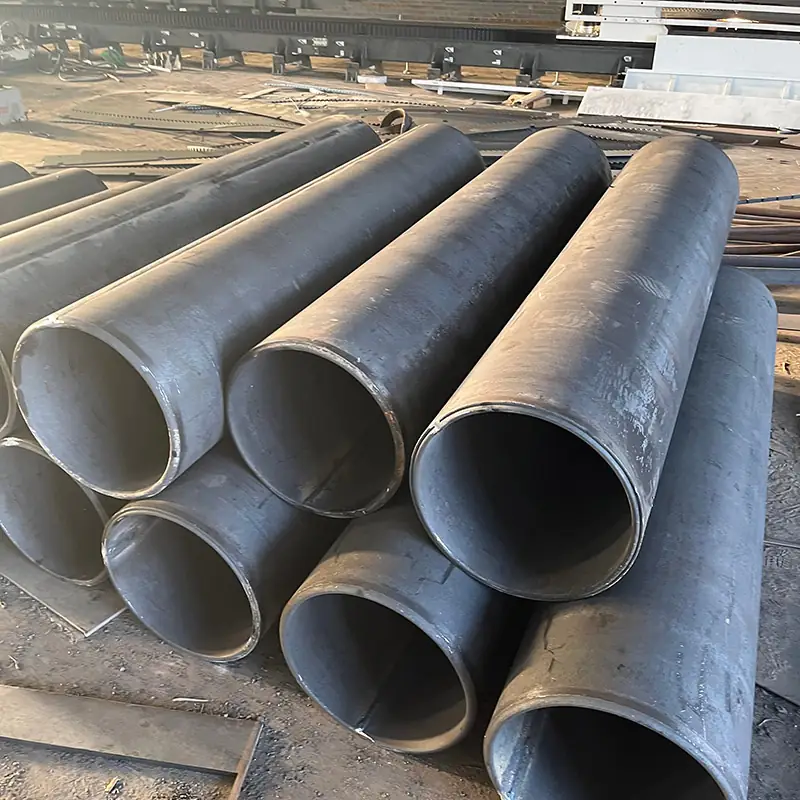

ERW Base Tube Verification: Checking the dimensions, wall thickness (7.92mm), and weld seam of the raw ERW steel tubes to ensure full compliance with API 5L specifications.

Surface Preparation to SA 2.5: The exterior steel surface undergoes aggressive shot blasting to SA 2.5 cleanliness, creating a near-white metal finish with a precise micro-roughness profile.

Advanced Thermal 3PE Coating: The pipe is preheated. FBE primer is electrostatically applied, immediately followed by the wrapping of a copolymer adhesive and the extrusion of the final HDPE protective jacket to form a dense, uniform protective shell.

Non-Destructive Spark Testing: 100% high-voltage Holiday testing (typically at 25kV) is executed across the entire coated pipe surface to guarantee an absolute zero-pinhole, continuous dielectric barrier.

Frequently Asked Questions (FAQ)

Q1: Why is an API 5L X42 base pipe specified for municipal water pipelines?

A: Although API 5L is primarily an oil and gas standard, it is widely utilized for critical municipal water mains due to its strict carbon steel chemistry and high pressure ratings. Grade X42 (L290) steel delivers an optimal balance of yield strength (minimum 290 MPa) and superb field weldability, ensuring the pipeline can safely withstand water hammer pressure spikes without cracking.

Q2: What are the distinct benefits of 3PE (3LPE) coating for underground pipelines?

A: Under DIN 30670 guidelines, 3PE coating merges three distinct layers: FBE primer for superior steel adhesion, copolymer adhesive for mechanical binding, and high-density PE for impact and moisture resistance. This synergistic composite provides the ultimate barrier against subterranean moisture, soil acids, microbes, and cathodic disbondment, outlasting standard liquid paints by decades.

Q3: How does the Schedule 20 wall thickness benefit water main projects?

A: “Schedule 20” signifies a wall thickness of 7.92mm for a 16-inch pipe. This wall profile provides the necessary structural ring stiffness to resist subterranean soil loads while significantly reducing overall steel weight compared to heavier schedules (like Sch 40 at 12.7mm). This lower weight directly translates to major cost savings in both pipe procurement and transport logistics.

Q4: How do you perform field welding and joint protection on 3PE-coated water lines?

A: The pipes are delivered with a standard bare steel cutback (50mm–100mm) at the ends to prevent the welding heat from damaging the 3PE coating. Once the field butt-welding is completed and passes inspection, the joints are wrapped and sealed using a matching heat-shrinkable sleeve (HSS) with a reinforced liquid epoxy primer to restore continuous, seamless corrosion protection.
