High Zinc Coating (275g/m²) Galvanized Steel Pipe 6 Inch for Solar Mounting System

Engineered to withstand extreme wind and snow loads in utility-scale solar installations, this High Zinc Coating (275g/m²) Galvanized Steel Pipe is the premier structural backbone for modern ground-mounted PV systems and top-of-pole solar racks. Utilizing a heavy-duty 6-inch nominal diameter (168.3mm OD) carbon steel pipe, it serves as an ultra-stable foundation pile, main support column, or structural torque tube.
The pipe is fabricated from high-strength structural steel and protected by a robust Z275 (275g/m²) galvanized zinc coating. This heavy-duty zinc cladding provides exceptional outdoor corrosion resistance, safeguarding the pipeline against high soil acidity, moisture, and continuous UV exposure. This ensures an uninterrupted, maintenance-free structural service life of over 25 years for large-scale solar farms and commercial energy developments.

High-Zinc-Coating-275g-m²-Galvanized-Steel-Pipe-6-Inch-for-Solar-Mounting-System-2

High-Zinc-Coating-275g-m²-Galvanized-Steel-Pipe-6-Inch-for-Solar-Mounting-System-1

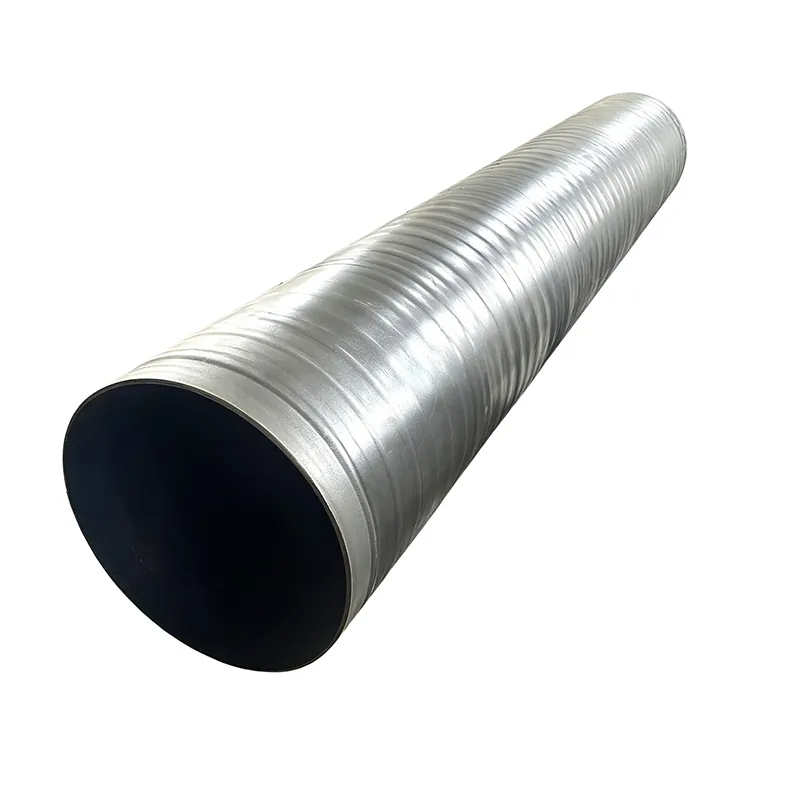

High-Zinc-Coating-275g-m²-Galvanized-Steel-Pipe-6-Inch-for-Solar-Mounting-System-3

Features & Advantages

High-Performance 275g/m² (Z275) Zinc Barrier: Delivers outstanding barrier and sacrificial cathodic protection, fully certified to meet standard outdoor solar-farm corrosion requirements.

Structural Backbone for Large Arrays: The massive 6-inch (168.3mm OD) profile provides exceptional section modulus and yield strength, capable of absorbing high wind shears and ground torque.

Premium Structural Steel Grades: Available in high-yield steel grades such as S350GD, S390GD, or ASTM structural equivalents, ensuring high structural load tolerance without structural deformation.

Precision CNC Customization: Can be supplied pre-drilled or custom-slotted using high-precision laser machinery, eliminating on-site cutting, welding, and subsequent zinc layer damage.

Technical Specifications

Specification Item	Detailed Description
Product Name	High Zinc Coated Solar Mounting Steel Pipe
Standard Specifications	EN 10346, ASTM A653 / A653M, JIS G3302 (Structural Steel Standards)
Common Steel Grades	S350GD+Z, S390GD+Z, DX51D+Z, ASTM Gr.50 (High Yield Strength)
Manufacturing Process	ERW (High-Frequency Welded) from High-Zinc Coils
Nominal Pipe Size (NPS)	6 Inch (DN150)
Outer Diameter (OD)	6.625 inches (168.3 mm)
Wall Thickness (WT)	Range from 3.0 mm to 7.11 mm (Schedule 40 equivalent: 7.11 mm, or custom)
Zinc Coating Weight	Z275 (Minimum 275 g/m² total both sides, approx. 20 microns per side)
Weld Seam Treatment	High-purity online zinc thermal spraying / zinc patching
End configurations	Square cut plain ends or laser-drilled/slotted to bracket specifications
Standard Length	5.8m, 6.0m, or customized as per site design requirements

Product Applications

Utility-Scale Solar Ground Mounts: Main structural piles driven directly into the ground or set in concrete piers.

Top-of-Pole Solar Mounting Systems: Heavy-duty main support masts carrying high-capacity solar arrays (typically 6 to 12 panels).

Solar Tracking Systems: Serving as central torque tubes and structural rotating columns requiring tight dimensional straightness.

Heavy Duty Outdoor Structural Racks: Carports, solar agricultural structures, and high-load outdoor solar frames.

Rigorous Quality Control & Manufacturing Process

Our 6-inch high-zinc solar pipes are manufactured under strict automated guidelines to ensure physical and structural consistency:

Structural Grade Coil Sourcing: Selecting S350GD or equivalent high-yield structural steel with certified Z275 pre-galvanized coating layers.

Continuous ERW Cold Forming: Precision roll-forming and high-frequency welding of the 168.3mm OD tube.

Weld Seam Online Zinc Restoration: As the high welding temperature burns the zinc along the longitudinal seam, automated thermal spray nozzles immediately apply high-purity molten zinc to fully patch and restore the anti-corrosion barrier.

CNC Laser Cutting & Drilling: Precision laser systems cut the pipe to length and drill custom bracket attachment holes, ensuring error-free on-site assembly and keeping edge coatings intact.

Frequently Asked Questions (FAQ)

Q1: Why is a 6-inch pipe specifically used as a mast in solar mounting systems?

A: Multi-panel ground mounts and top-of-pole racks generate massive wind-shear forces. For example, a 6-panel array can produce thousands of foot-pounds of torque at the pole base during high winds. A 6-inch (168.3mm OD) Schedule 40 or heavy-duty steel pipe provides the necessary structural mass, bending resistance, and ring stiffness to prevent the mount from leaning, rotating, or collapsing during storms.

Q2: Is a 275g/m² (Z275) zinc coating sufficient for outdoor solar farms?

A: Yes. Under standard environmental classifications (such as C3 or mild C4 environments), a Z275 zinc coating (275g/m² both sides) is the standard industry choice. It provides an optimal balance of cost and performance, delivering a maintenance-free service life of over 25 years. For extreme coastal (C5) environments, a heavier coating like Z450 or hot-dip galvanizing is recommended.

Q3: How is the weld seam of the pre-galvanized ERW pipe protected?

A: During the ERW welding process, the zinc coating along the seam is thermal-flashed. To prevent localized rust, our production line uses an online zinc-spraying system that applies high-purity molten zinc directly over the warm weld seam. This process restores the corrosion-resistant barrier, ensuring seamless protection across the entire pipe body.

Q4: Can this pipe be supplied with pre-drilled bracket attachment holes?

A: Yes, absolutely. We offer fully customized CNC laser drilling. You can provide your bracket mounting hole coordinates, and our computerized lasers will drill or slot the pipe prior to final quality checks, saving your installation crews massive amounts of time and labor on the construction site.
