Internal and External FBE Coated SSAW Steel Pipe 1016mm OD for Potable Water

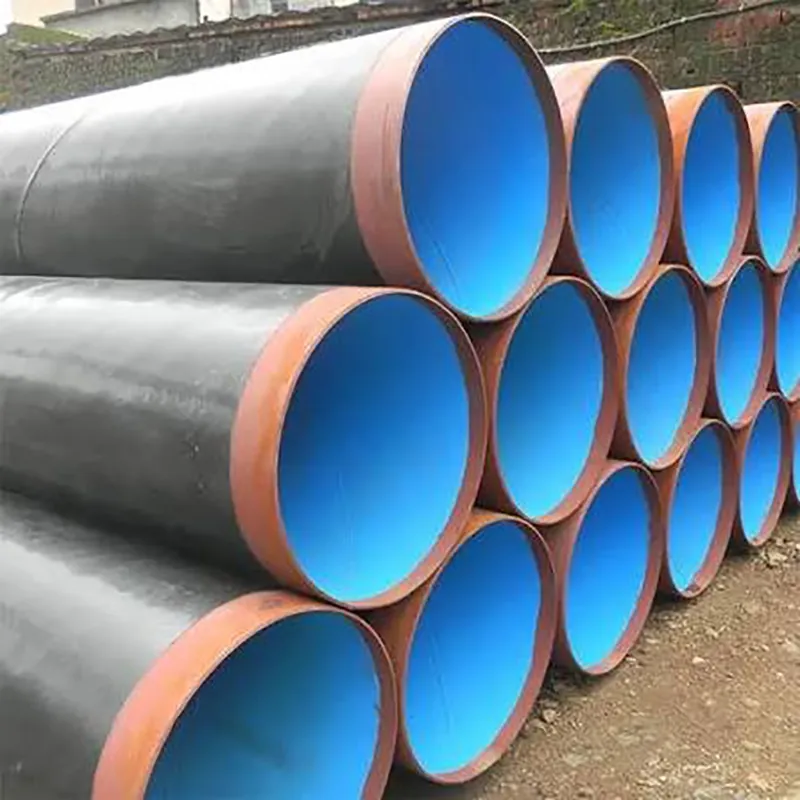

Engineered to provide the highest standard of hygiene and structural durability for major municipal water networks, this Internal and External FBE Coated SSAW Steel Pipe is optimized for high-capacity potable water transmission. Utilizing a large 1016mm outer diameter (40-inch NPS) Spiral Submerged Arc Welded (SSAW) steel base, the pipeline accommodates massive water volumes with excellent roundness and weld strength.
Both the inner and outer surfaces are encapsulated in a premium Fusion Bonded Epoxy (FBE) coating applied in strict compliance with the AWWA C213 standard. The internal FBE lining provides a certified, non-toxic, and ultra-smooth surface that prevents scaling and tuberculation, maintaining high hydraulic efficiency and an optimal Hazen-Williams flow coefficient. Simultaneously, the external FBE coating completely isolates the steel body from harsh soil moisture and electrochemical corrosion, ensuring a clean, safe, and maintenance-free drinking water supply for decades.

Features & Advantages

Certified Potable Water Safety: The internal FBE lining strictly complies with NSF/ANSI/CAN 61 and AWWA C213 sanitary standards, guaranteeing zero chemical leaching, heavy metal contamination, or taste alterations.

360-Degree Total Corrosion Defense: Dual-sided FBE encapsulation permanently prevents internal water-induced rust and external soil-borne electrochemical corrosion.

Exceptional Hydraulic Efficiency: The glass-smooth internal epoxy finish maximizes flow rates, drastically reduces pumping friction (head loss), and eliminates the risk of tuberculation over the pipeline’s lifespan.

Cost-Effective Large-Diameter Base: The SSAW spiral-welded process offers superior dimensional tolerances, continuous length options, and high cost-efficiency for 1016mm pipelines compared to alternative manufacturing methods.

Technical Specifications

Specification Item	Detailed Description
Product Name	Internal & External FBE Coated SSAW Steel Pipe
Base Pipe Standard	AWWA C200, API 5L Grade B, X42, X52 (Spiral Welded Line Pipe)
Manufacturing Process	SSAW (Spiral Submerged Arc Welding)
Nominal Pipe Size (NPS)	40 Inch
Outer Diameter (OD)	1016 mm (40.00 inches)
Wall Thickness (WT)	Typical 9.53 mm to 19.05 mm (Customizable based on design operating pressure)
Anti-Corrosion Coating	Dual-Sided Fusion Bonded Epoxy (FBE) - Powder System
Coating Standards	AWWA C213, NSF/ANSI/CAN 61, ISO 21809-2, CSA Z245.20
Typical Coating Thickness	Internal FBE: 300 to 400 microns \| External FBE: 350 to 500 microns
Pipe Ends	Beveled ends (30°~35°) with factory bare steel cutbacks on both inside and outside
Standard Length	11.8m, 12.0m, or customized as per project shipping logistics

Product Applications

Municipal Potable Water Mains: Regional fresh drinking water trunklines and urban bulk water transmission systems.

Desalination Plant Output Networks: Transporting desalinated water from coastal facilities to inland reservoir systems.

Water Treatment Plant Supply Lines: High-capacity raw freshwater mains connecting water sources to treatment grids.

Underground Pipelines in Aggressive Terrain: Buried water mains traversing highly saline coastal areas or chemical-rich industrial soils.

Rigorous Quality Control & Manufacturing Process

Our 1016mm SSAW pipes undergo a continuous, strictly controlled manufacturing and coating protocol:

Dual-Sided Abrasive Blast Cleaning: Both the internal and external surfaces of the SSAW pipe are blast-cleaned to SA 2.5 cleanliness, creating a near-white steel surface with a uniform micro-roughness profile essential for FBE powder adhesion.

Induction Pre-heating: The large-diameter pipe is heated to approximately 200°C to 230°C using highly automated induction heating coils to ensure consistent temperature across the entire steel body.

Simultaneous Electrostatic Powder Spraying: High-purity, food-grade epoxy powder is electrostatically sprayed onto both the inner and outer pre-heated steel walls. The powder melts, flows, and cures to form a seamless, chemically cross-linked thermosetting epoxy shield.

Dielectric & Holiday Testing: Following water quenching, the inner and outer surfaces are checked with electromagnetic DFT gauges. 100% Holiday spark testing (typically at 2kV to 2.5kV) is executed on both sides to guarantee an absolute zero-pinhole, continuous barrier.

Frequently Asked Questions (FAQ)

Q1: Why is Dual-Sided FBE preferred for large-diameter potable water mains?

A: Unlined carbon steel pipes rust easily, leading to colored water, reduced flow, and pipe wall thinning. External-only coatings leave the inside vulnerable. Dual-sided FBE provides 360-degree protection. It chemically bonds to both the inner and outer steel surfaces, ensuring the pipe remains completely free of internal corrosion while maintaining a tough, soil-resistant barrier on the outside.

Q2: Are the internal FBE coatings certified safe for drinking water?

A: Yes, absolutely. Our internal FBE lining formulations are fully certified to NSF/ANSI/CAN 61 and AWWA C213 standards. They contain zero heavy metals, VOCs, or toxic additives, ensuring that the transported water remains safe, tasteless, and odorless during municipal conveyance.

Q3: How does the SSAW process benefit a 1016mm water pipeline?

A: SSAW (Spiral Submerged Arc Welded) steel pipe is highly cost-effective for large diameters like 1016mm (40 inches). Unlike straight-seam pipes, spiral welding can produce large pipes from steel coils rather than plates, offering excellent dimensional roundness and uniform wall thickness. This is highly beneficial for alignment during field welding.

Q4: How do you weld and protect the pipe joints on-site?

A: Pipes are delivered with precision-beveled ends and a factory bare steel cutback (50mm–100mm) on both the inside and outside. After field butt-welding and weld inspection, the joint is cleaned. Because a 1016mm (40-inch) diameter allows for internal access, pipeline crews (or specialized robotic joint-coaters) can enter the pipe to manually clean and apply matching liquid food-grade epoxy to the inner weld seam, while a heat-shrinkable sleeve or liquid FBE is applied to the outside.
