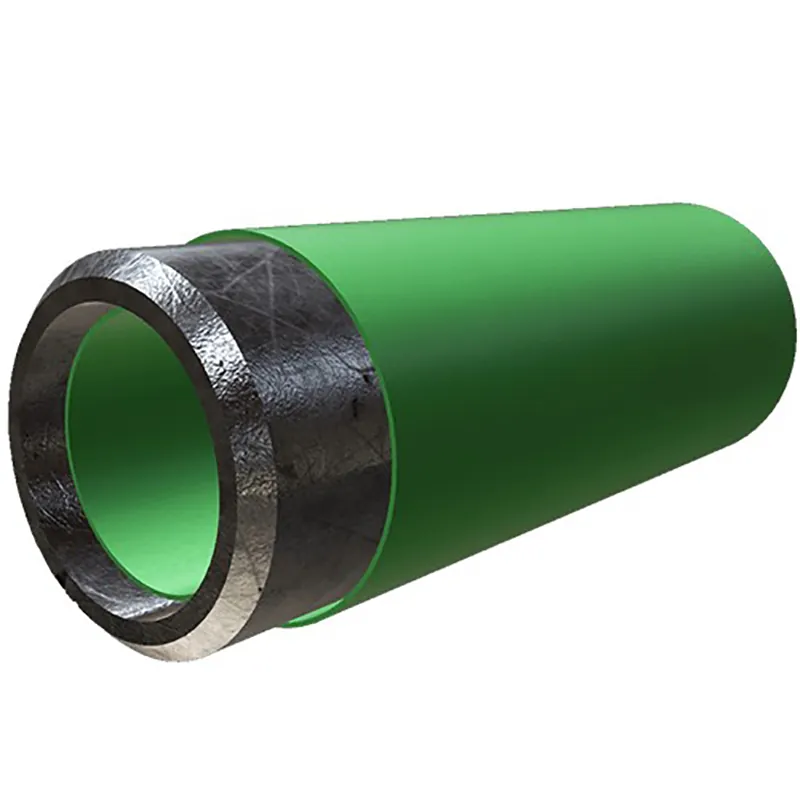

ASTM A53 Grade B FBE Coated Welded Pipe 6 Inch for Fire Sprinkler System

Engineered to deliver uncompromising reliability for critical life-safety infrastructure, this ASTM A53 Grade B FBE Coated Welded Pipe is optimized for automatic fire sprinkler systems, main risers, and large feed networks. Utilizing high-strength ASTM A53 Grade B steel, this 6-inch nominal diameter (168.3mm OD) Electric Resistance Welded (ERW) pipe offers exceptional yield strength and uniform wall thickness, enabling it to easily withstand high hydrostatic test pressures.
The pipe is protected by an advanced Fusion Bonded Epoxy (FBE) coating, typically finished in high-visibility safety Red (RAL 3000 / RAL 3001). This thermosetting polymer coating chemically cross-links with the steel substrate to form an impermeable, ultra-smooth barrier. FBE coating prevents internal tuberculation and sediment buildup that can clog sprinkler nozzles, while protecting against Microbially Induced Corrosion (MIC) in stagnant wet pipe systems, providing a maintenance-free, 30+ year service life for commercial, industrial, and high-rise fire protection networks.

Features & Advantages

Zero Tuberculation & Clog Prevention: The ultra-smooth internal FBE lining prevents mineral scaling, rust accumulation, and biofilm growth, ensuring maximum hydraulic flow and preventing sprinkler head blockages.

Superior MIC Resistance: Strongly resists Microbially Induced Corrosion (MIC), a common failure point in stagnant wet pipe fire protection systems, maintaining structural integrity over decades.

High-Visibility Safety Finish: Coated in standard safety Red (such as RAL 3000 or RAL 3001), complying with international color-coding regulations for instant fire-line identification.

Robust ASTM A53 Grade B Steel Base: Offers a minimum yield strength of 35,000 psi, ensuring excellent pressure containment and resistance to mechanical impact during installation.

Grooved End Availability: Available with roll-grooved ends to facilitate rapid, secure mechanical coupling with FM Approved and UL Listed grooved fittings.

Technical Specifications

Specification Item	Detailed Description
Product Name	FBE Coated Welded Steel Pipe for Fire Protection
Base Pipe Standard	ASTM A53 Grade B (Welded ERW Type E)
Nominal Pipe Size (NPS)	6 Inch (DN150)
Outer Diameter (OD)	6.625 inches (168.3 mm)
Wall Thickness (WT)	Schedule 40 (0.280 inches / 7.11 mm) or as specified
Anti-Corrosion Coating	Single-Layer Fusion Bonded Epoxy (FBE)
Color Specifications	High-Visibility Red (RAL 3000 / RAL 3001)
Coating Standards	AWWA C213, FM 1630, UL 852, ISO 21809-2
End Connection Options	Roll-Grooved Ends for couplings, Beveled Ends for welding, or Plain Ends
Standard Length	5.8m, 6.0m, or customized

Product Applications

Automatic Fire Sprinkler Wet Systems: Highly reliable main risers and horizontal feed lines supplying fire suppression water.

Standpipe & Hose Systems: Subterranean and vertical water supply networks for dry or wet standpipe installations.

Industrial Facility Fire Protection Loops: Buried and overhead firewater distribution mains in petrochemical plants, warehouses, and factories.

Corrosive Soil & Offshore Fire Lines: Fire suppression piping crossing through highly saline, damp, or chemical-rich environments.

Rigorous Quality Control & Manufacturing Process

Our 6-inch fire protection pipes undergo a rigorous quality management cycle to ensure compliance with global fire-safety codes:

Mill Hydrostatic Testing: Every ASTM A53 Grade B ERW pipe undergoes a minimum 5-second hydrostatic test at the mill to guarantee zero pinhole leaks along the seam or steel body.

Surface Preparation to SA 2.5: The carbon steel pipe undergoes aggressive shot blasting to achieve an SA 2.5 near-white metal finish, establishing the precise anchor profile required for dry powder adhesion.

Electrostatic Red FBE Coating: The pipe is induction-heated to approximately 200°C–230°C. Red thermosetting epoxy powder is electrostatically sprayed onto the pipe, melting and cross-linking to cure into a continuous, tough protective film.

End Grooving & Final Quality Checks: Roll grooving is completed via precision machinery to standard dimensions. 100% Holiday spark testing is executed across the coated surface to ensure a completely pinhole-free barrier.

Frequently Asked Questions (FAQ)

Q1: Why is an FBE coating superior to standard red paint or galvanization for wet fire sprinkler systems?

A: Standard wet paints are thin barrier coatings prone to chipping and internal degradation. Hot-dip galvanization is historically common, but wet sprinkler pipes are highly vulnerable to internal corrosion, scaling, and MIC (Microbially Induced Corrosion) due to oxygenated, stagnant water. FBE is a chemically cross-linked thermosetting polymer that forms a thick, highly adhesive, and ultra-smooth layer. This layer completely stops internal scaling, eliminates nozzle blockage risks, and outlasts standard paints by decades.

Q2: What is the benefit of using ASTM A53 Grade B ERW steel as the base pipe?

A: ASTM A53 Grade B ERW pipe possesses a high yield strength of 35,000 psi, ensuring excellent burst-pressure margins. ERW manufacturing ensures precise dimensional control, highly consistent wall thickness (7.11mm for Sch 40), and excellent roundness. These traits are essential for consistent field grooving and high-pressure mechanical joint assembly.

Q3: Are roll-grooved ends standard on this 6-inch FBE pipe?

A: Yes, we can supply this pipe with precision factory roll-grooves. Roll-grooved joints are the global standard for 6-inch fire sprinkler lines. They allow for rapid, flexible mechanical assembly on-site using standard grooved couplings, eliminating the need for slow, high-hazard welding inside finished buildings.

Q4: Can this FBE coated pipe be used in dry pipe sprinkler systems?

A: While hot-dip galvanized pipe is traditionally utilized in dry pipe systems, FBE coated pipe is highly suitable. Dry pipe systems suffer heavily from internal corrosion caused by trapped condensation and oxygen. Internal FBE coating provides a seamless chemical barrier that completely halts oxygen corrosion, making it a premium upgrade for dry and preaction fire lines.
