Heavy Duty 3PE Coated LSAW Pipe 48 Inch X70 for High Pressure Gas Line

Engineered for mega-scale energy infrastructure, this Heavy Duty 3PE Coated LSAW Pipe is the ultimate solution for high-capacity, long-distance natural gas transmission. Featuring a massive 48-inch (1219mm) outer diameter and fabricated from premium API 5L X70 high-yield steel, this Longitudinal Submerged Arc Welded (LSAW) pipe is specifically designed to safely contain extreme internal gas pressures.
To ensure decades of reliable operation in harsh subterranean or sub-sea environments, the exterior is fortified with an advanced Three-Layer Polyethylene (3PE) coating. This rugged composite barrier completely neutralizes electrochemical corrosion, prevents cathodic disbondment, and protects the steel substrate from severe mechanical soil stress during backfilling. Balancing immense structural strength with superior anti-corrosion longevity, this 48-inch pipeline guarantees unparalleled safety and hydraulic efficiency for critical transnational gas grids.

Heavy-Duty-3PE-Coated-LSAW-Pipe-48-Inch-X70-for-High-Pressure-Gas-Line-1

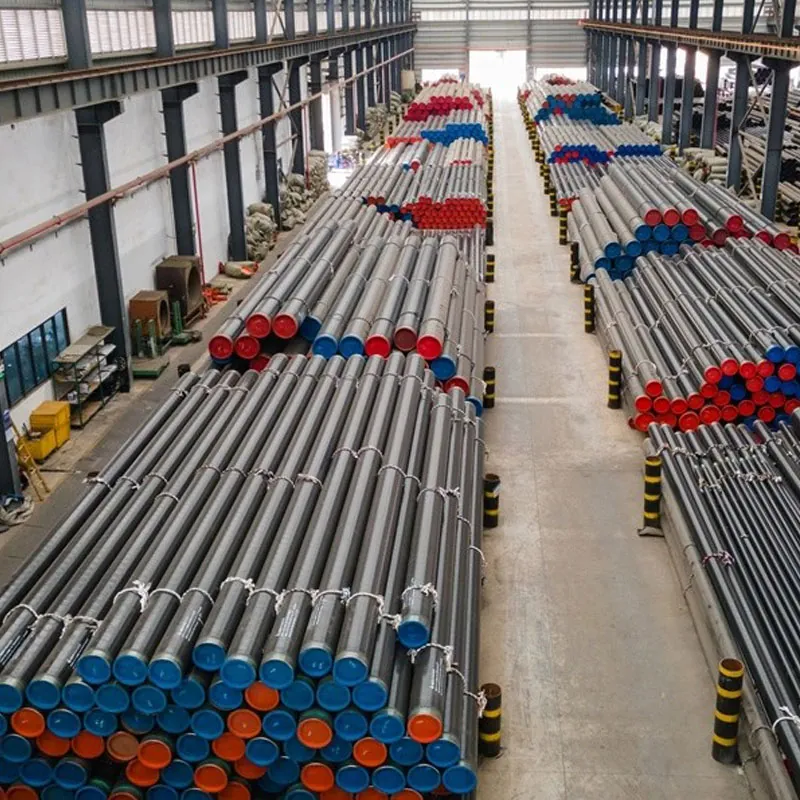

Heavy-Duty-3PE-Coated-LSAW-Pipe-48-Inch-X70-for-High-Pressure-Gas-Line-2

Features & Advantages

Ultra-High Yield Strength (X70): API 5L Grade X70 micro-alloyed steel provides exceptional tensile strength. This allows the pipeline to handle immense operating pressures without requiring excessively thick walls, thereby drastically optimizing project material and welding costs.

Superior LSAW Integrity: The straight-seam submerged arc welding process delivers the highest level of weld quality and dimensional uniformity, which is mandatory for 48-inch pipelines operating under intense continuous stress.

Heavy-Duty 3PE Armor: The synergistic defense of an FBE primer, copolymer adhesive, and high-density polyethylene (HDPE) topcoat ensures a 30+ year lifespan, resisting rock damage, root penetration, and aggressive soil chemistry.

Mega-Scale Flow Capacity: The massive 48-inch (1219mm) bore facilitates the transport of colossal volumes of natural gas across continents, maximizing the economic efficiency of major energy corridors.

Technical Specifications

Specification Item	Detailed Description
Product Name	Heavy Duty 3PE Coated LSAW Steel Pipe
Base Pipe Material	API 5L Grade X70, PSL2 (High Toughness)
Manufacturing Process	LSAW (Longitudinal Submerged Arc Welding - JCOE process)
Nominal Pipe Size (NPS)	48 Inch (DN1200)
Outer Diameter (OD)	48.00 inches (1219.2 mm)
Wall Thickness (WT)	Typically 0.500" to 1.500" (12.7 mm – 38.1 mm) as per project pressure ratings
Coating Structure	Layer 1: Fusion Bonded Epoxy (FBE) Layer 2: Copolymer Adhesive Layer 3: Polyethylene (PE) Topcoat
Coating Standards	ISO 21809-1, DIN 30670, CSA Z245.21
Pipe Ends	Precision beveled ends with a 100mm-150mm bare steel cutback for heavy-wall welding
Standard Length	12m (40ft), or customized to optimize logistics

Product Applications

Transnational Gas Transmission: Mainline corridors requiring extreme high-pressure tolerance and massive volume capacity.

Energy Hub Tie-Ins: Heavy-duty pipeline networks connecting LNG terminals, compressor stations, and primary processing facilities.

Harsh Terrain Infrastructure: Reliable cross-country routing through rocky soils, fault zones, or deep river crossings requiring maximum pipeline toughness and impact resistance.

High-Volume Crude Oil Transport: Safe, leak-proof large-diameter lines for heavy hydrocarbon distribution.

Rigorous Quality Control & Manufacturing Process

Due to the catastrophic risks associated with high-pressure gas failures, our 48-inch LSAW pipes undergo elite-level quality assurance protocols:

High-Grade Plate Milling: Production begins with TMCP (Thermo-Mechanical Control Process) X70 steel plates, rigorously inspected for metallurgical purity and flawlessness.

Advanced LSAW Forming (JCOE): The plate is incrementally formed using the J-C-O-E process to ensure perfect roundness and relieve residual stresses. Submerged arc welding is performed inside and out.

100% NDT Inspection: The longitudinal weld seam is subjected to 100% X-ray Radiographic Testing (RT) and Ultrasonic Testing (UT) to guarantee absolutely zero internal welding defects.

Surface Prep & 3PE Coating: The massive pipe is abrasive-blasted to SA 2.5 cleanliness. The 3PE layers are then thermally extruded over the heated pipe. The final product passes 100% Holiday testing (high-voltage spark test) to ensure a pinhole-free protective shell.

Frequently Asked Questions (FAQ)

Q1: Why is API 5L X70 steel preferred for a 48-inch gas pipeline?

A: X70 is a high-strength steel grade. For massive 48-inch pipelines, achieving the required burst-pressure rating with lower-grade steel would require extremely thick walls. X70 allows engineers to keep the wall thickness manageable, which saves thousands of tons of steel, reduces transportation weight, and significantly speeds up field welding times.

Q2: What does the “JCOE” process mean for LSAW pipes?

A: JCOE refers to the progressive mechanical forming steps: J-shape, C-shape, O-shape, and Expansion. It is the most advanced and precise method for manufacturing large-diameter, heavy-wall pipes. The final mechanical expansion step (E) guarantees exceptional diameter tolerance and roundness, which is crucial for aligning the pipes during field welding.

Q3: How do you prevent damage to the 3PE coating during transport of such massive pipes?

A: Given their immense size and weight, 48-inch pipes require specialized logistics. We use nylon slings, vacuum lifters, or padded hooks for loading. During transport, the pipes are secured on custom saddles with non-abrasive separators to prevent any localized crushing or friction damage to the PE jacket.

Q4: Can the 3PE coating survive the intense heat of multi-pass welding on heavy-wall X70 pipe?

A: Yes. To accommodate the immense heat generated by welding heavy-wall X70 pipes, we provide an extended bare steel “cutback” at the pipe ends (typically up to 150mm). This safety margin ensures the welding heat dissipates through the steel before it can melt or compromise the factory-applied 3PE coating. The weld joint is later protected with a heavy-duty field joint shrink sleeve.
