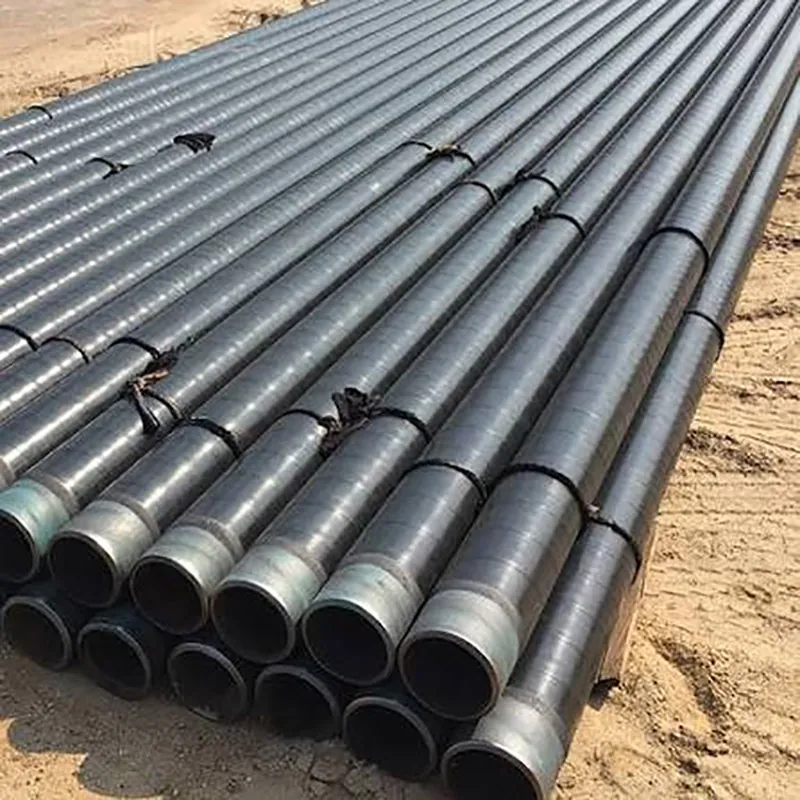

CSA Z245.21 Standard 3PE Coating Steel Line Pipe 16 Inch Sch 40

Engineered to satisfy the rigorous technical demands of the Canadian and North American energy sectors, this CSA Z245.21 Standard 3PE Coating Steel Line Pipe represents the benchmark for high-performance subterranean oil and gas transportation. Featuring a 12.7mm wall thickness (0.500-inch Schedule 40) on a 16-inch nominal steel line pipe, this pipeline delivers exceptional pressure containment and crush resistance.
The exterior coating strictly complies with the Canadian standard CSA Z245.21, ensuring unmatched low-temperature adhesion and high impact strength in extreme northern climates. This specialized Three-Layer Polyethylene (3PE) coating effectively isolates the raw carbon steel from aggressive soils and moisture, preventing cathodic disbondment and ensuring an ultra-long, maintenance-free service life in the most demanding geological terrains.

Features & Advantages

Full CSA Z245.21 Compliance: Specially designed to meet Canadian regulatory requirements, ensuring premium coating peel strength and rigorous laboratory testing verification.

Extreme Cold-Weather Resilience: Formulated to withstand cold-climate handling and backfilling operations at sub-zero temperatures without cracking, delaminating, or losing its anti-corrosion properties.

Heavy-Duty Sch 40 Parameters: The 16-inch (406.4mm OD) pipe with a 12.7mm wall thickness provides excellent mechanical stability, resisting heavy external soil loads and high internal pressure spikes.

Exceptional Cathodic Disbondment Resistance: The chemical fusion of the FBE primer layer prevents moisture from migrating beneath the coating, ensuring a permanent bond even under cathodic protection current stress.

Technical Specifications

Specification Item	Detailed Description
Product Name	CSA Z245.21 Standard 3PE Coating Steel Line Pipe
Coating Specification	CSA Z245.21 (External Polyethylene Coating for Steel Pipe)
Base Pipe Material	CSA Z245.1 (Grade 290 to Grade 483) or API 5L (Grade B, X52, X60)
Manufacturing Process	Seamless (SMLS) or LSAW/ERW
Nominal Pipe Size (NPS)	16 Inch (DN400)
Outer Diameter (OD)	16.00 inches (406.4 mm)
Wall Thickness (WT)	Schedule 40 (0.500 inches / 12.70 mm)
Coating Structure	Layer 1: Fusion Bonded Epoxy (FBE) Layer 2: Copolymer Adhesive Layer 3: UV-Stabilized Polyethylene (PE)
Pipe End Finish	Beveled ends for field welding with a standard 100mm-150mm bare steel cutback
Standard Length	Double Random Length (DRL) or fixed 11.8m/12.0m

Product Applications

North American Oil & Gas Transmission: Cross-country pipeline mains requiring strict regulatory compliance with CSA and ASME standards.

Oil Sands & Heavy Crude Transport: Durable, thick-wall pipelines designed for distributing heavy hydrocarbons and bitumen.

High-Pressure Regional Trunklines: Moving large volumes of natural gas or liquefied petroleum gas securely between distribution hubs.

Extreme Climate Pipelines: Subterranean fluid corridors buried in high-latitude regions characterized by freezing soils and frost heave.

Rigorous Quality Control & Manufacturing Process

Due to the stringent safety requirements of North American energy infrastructure, our CSA Z245.21 pipes undergo premium quality control:

Low-Temperature Toughness Verification: Steel raw materials undergo Charpy V-notch impact testing to ensure they maintain structural ductility in freezing environments.

SA 2.5 Abrasive Blasting: The exterior of the 16-inch pipe is grit-blasted to an SA 2.5 near-white metal finish, establishing the ideal micro-roughness profile for optimal coating adhesion.

Controlled 3PE Co-Extrusion: The pipe is induction-heated to precise levels, electrostatically sprayed with FBE primer, and wrapped with intermediate adhesive and outer polyethylene topcoat under automated thermal control.

CSA Cold-Impact & Peel Strength Testing: Beyond standard Holiday testing (dielectric spark inspection), the coating is subjected to laboratory cold-impact and peel-strength testing to guarantee full compliance with CSA Z245.21.

Frequently Asked Questions (FAQ)

Q1: Why is the CSA Z245.21 standard preferred for North American pipelines?

A: CSA Z245.21 is the national standard of Canada for external polyethylene coatings on steel pipes. Because it was developed for northern climates, it places a unique emphasis on low-temperature performance, resistance to cold handling impact, and outstanding resistance to cathodic disbondment in freezing soils, making it superior for cold-weather deployments compared to standard global specifications.

Q2: Is a 16-inch Sch 40 pipe suitable for high-pressure oil and gas transmission?

A: Yes. A 16-inch Sch 40 line pipe features a substantial 12.70mm (0.500-inch) wall thickness. This heavy-duty wall profile provides an exceptional pressure containment rating, making it the industry standard for high-pressure regional transmission lines.

Q3: How are the weld joints protected on-site for a CSA Z245.21 pipeline?

A: The pipes are supplied with factory-machined bare steel “cutbacks” at the ends to prevent coating damage during welding. Once the butt-welding is completed and passes inspection on-site, the joints are wrapped with CSA-compliant field joint coatings, typically using premium, low-temperature rated heat-shrinkable sleeves.

Q4: Can this CSA Z245.21 coating be applied to API 5L steel grades?

A: Yes. While CSA Z245.1 is the Canadian line pipe standard, we can apply this CSA Z245.21 coating to any compatible API 5L line pipe (including Grade B, X52, X60, or X70) in both seamless and welded processes, ensuring full compatibility with your project’s technical specifications.
