API 5L Grade B 3PE Coated ERW Pipe 8 Inch Sch 40 for Underground Water

The API 5L Grade B 3PE Coated ERW Pipe is a premium pipeline solution engineered specifically for high-durability underground water transmission and distribution networks. Featuring an 8-inch nominal pipe size (NPS 8) and Schedule 40 wall thickness, this Electric Resistance Welded (ERW) carbon steel pipe delivers exceptional dimensional accuracy, structural integrity, and weldability.
To combat severe subterranean conditions, the exterior is fortified with an advanced Three-Layer Polyethylene (3PE) anti-corrosion coating system. This sophisticated multi-layer defense acts as a highly effective barrier, isolating the steel substrate from corrosive soils, moisture, and harsh acid-alkali media. As a result, it completely mitigates the risk of electrochemical corrosion, ensuring uninterrupted fluid flow, minimizing maintenance interventions, and providing a reliable, leak-free foundation for long-term municipal and industrial water infrastructure.

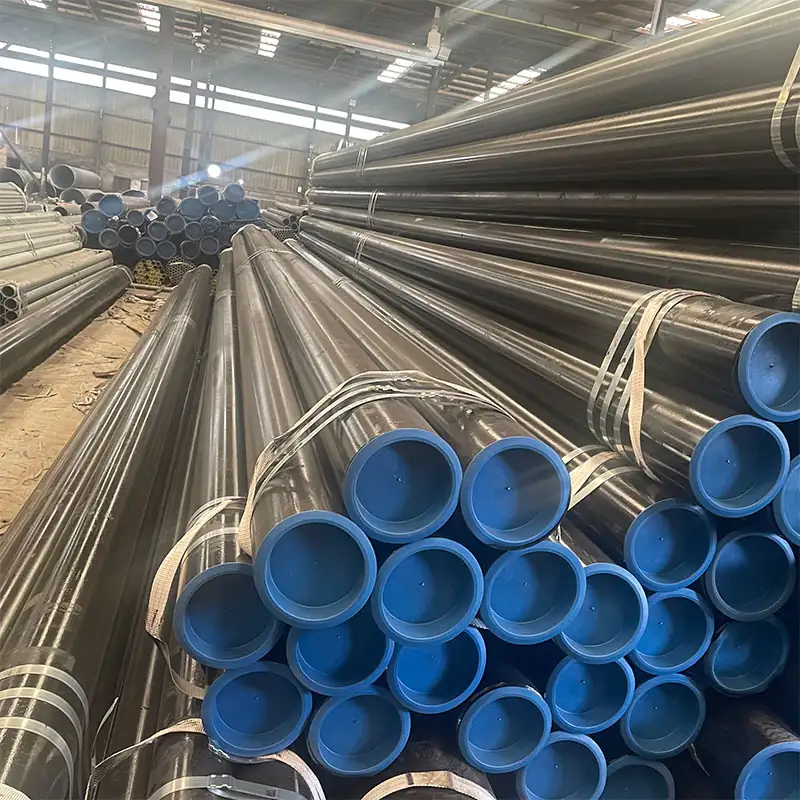

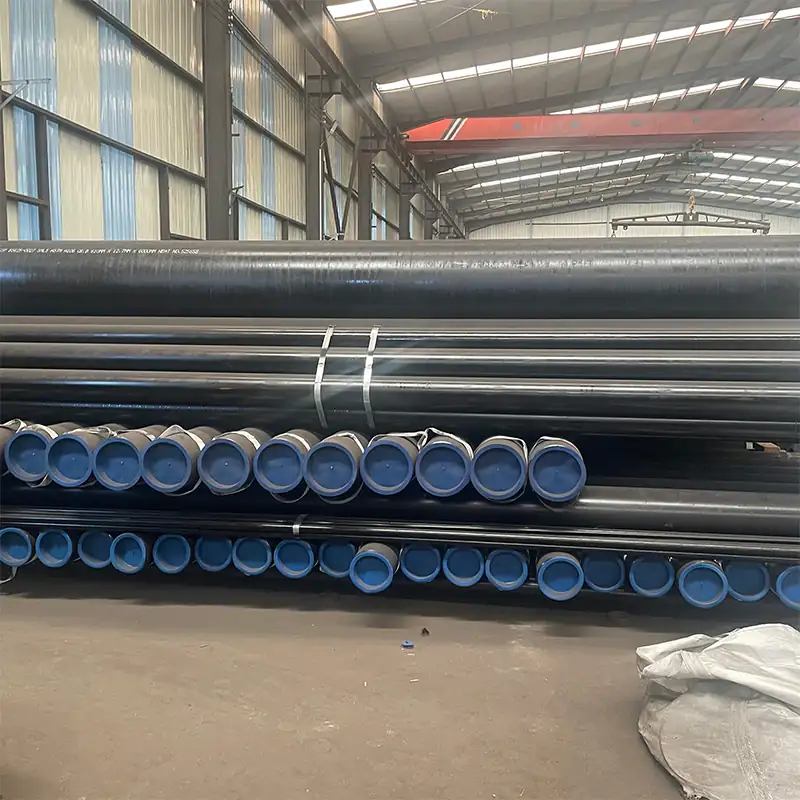

3pe straight seam steel pipe (three layer polyethylene coated)

Features & Advantages

Extended 30-Year Service Life: The robust 3-layer anti-corrosion composite creates an impenetrable barrier. Once buried, the pipeline reliably performs for over three decades, drastically reducing long-term maintenance and replacement costs.

Advanced 3PE Composite Armor: This system perfectly synergizes the superior adhesion of the Fusion Bonded Epoxy (FBE) primer, the mechanical bonding of the copolymer adhesive, and the rugged impact resistance of the outer Polyethylene (PE) jacket.

Environmentally Safe & Non-Toxic: Manufactured without harmful heavy metal stabilizers, our polyethylene coating process strictly complies with global green environmental protection standards. This guarantees it is 100% safe for underground water ecosystems.

High Resistance to Soil Stress: The smooth, tough exterior PE layer effectively resists soil movement, mechanical stress during backfilling, and aggressive plant root penetration, maintaining structural integrity in complex geological conditions.

Technical Specifications

Specification Item	Detailed Description
Product Name	3PE Coated ERW Steel Pipe (Three-Layer Polyethylene)
Base Pipe Material	API 5L Grade B (Line Pipe)
Manufacturing Process	ERW (Electric Resistance Welding)
Nominal Pipe Size (NPS)	8 Inch (DN200)
Outer Diameter (OD)	8.625 inches (219.1 mm)
Wall Thickness (WT)	Schedule 40 (0.322 inches / 8.18 mm)
Coating Structure	Layer 1: Fusion Bonded Epoxy (FBE) Primer Layer 2: Copolymer Adhesive Layer 3: Polyethylene (PE) Topcoat
Coating Standards	GB/T 23257-2017, SY/T 0413-2002, DIN 30670
Pipe Ends	Beveled ends (30°~35°) with a bare steel cutback length of 50mm-150mm for field welding
Standard Length	5.8m, 6m, 11.8m, 12m, or customized as per project requirements

Product Applications

Underground Water Pipelines: Municipal water mains, raw water diversion projects, and large-scale agricultural irrigation systems.

Subterranean Fluid Transmission: Safe and efficient transport of industrial liquids through highly corrosive soil environments.

Wastewater & Drainage Systems: Dependable infrastructure networks for urban sewage management and industrial effluent discharge.

Rigorous Quality Control & Manufacturing Process

Every batch of our 3PE coated ERW pipes undergoes stringent quality assurance. The manufacturing process strictly follows international procedures:

Surface Preparation: Base API 5L ERW pipes undergo advanced abrasive blast cleaning (shot blasting) to achieve an SA 2.5 surface cleanliness. This removes all mill scale and rust, establishing an optimal anchor profile for maximum FBE adhesion.

Thermal Coating Process: The pipe is induction-heated to precise temperatures. FBE powder is electrostatically applied, immediately followed by the wrapping of a copolymer adhesive and the extrusion of the final PE jacket.

Defect Inspection: 100% Holiday testing (electric spark inspection) is conducted across the entire pipe length to guarantee a flawless, pinhole-free coating.

Note on Visual Appearance: The thermal fusion extrusion process may yield a slight “orange peel” (flow pattern) texture on the surface. This is a standard manufacturing characteristic of authentic 3PE pipes and in no way compromises the pipeline’s protective capabilities.

Frequently Asked Questions (FAQ)

Q1: Why are the ends of the 3PE coated pipe bare (without coating)?

A: This bare section, known as the “cutback,” is a mandatory design requirement. It prevents the coating from melting or burning during on-site butt welding. After the pipes are welded, the joints are sealed using heat shrinkable sleeves (field joint coating).

Q2: I noticed minor surface scratches upon delivery. Does this indicate a quality defect?

A: Minor scuffs or superficial scratches on the outer PE jacket can occasionally occur during lifting, transit, or stacking. Provided the scratch does not expose the underlying layers or the bare steel, and the depth remains within standard tolerance limits, the anti-corrosion performance is fully intact. This is not considered a manufacturing defect.

Q3: The coating feels slightly softer in summer and harder in winter. Is this a concern?

A: Not at all. Polyethylene is a thermoplastic material, meaning it naturally becomes slightly more pliable in high temperatures and contracts (hardens) in freezing conditions. These are standard physical properties that do not impair the structural integrity or anti-corrosion efficiency of the pipe.

Q4: What is the white, frost-like powder sometimes seen on the pipe surface?

A: This phenomenon is known as “wax precipitation” (or blooming), which occurs when the PE coating is exposed to prolonged UV sunlight or stored in extremely low temperatures. It is purely cosmetic, easily wiped off, and has absolutely zero impact on the pipeline’s performance.
